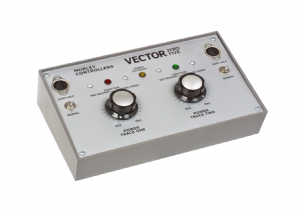

Morley Vector Controller

 Morley Vector Controller

"00" "H0" and "009" "N" Gauge TwinTrack controller.
1.1Amp. per track @ 12V DC.

EACH CONTROL KNOB HAS A ZERO CLICK INDICATOR AT '12 'O'clock.
FREE 2 center off 2.5 mtr handheld remote power and direction change controllers included each Hand Held Unit has a built in BALUN.

£75 plus £4.80 P&P total £79.80 . Total includes postage and package UK.Please telephone for postage to other countries.









Our Price£79.80
CodeUK VECTOR
Stock 110

Save wishlist

For 'H0' '00' gauge layouts.

State-of-the-art design, electronics, and construction, offer the very best in performance and capability.

Each 220/240 volts AC mains-powered controller, is designed with twin transformers, to supply correct voltage to each track. Automatic re-set 1.1 amp circuit breakers protect against overload. Mains lead 1.2 metres long.

Unique to Morley, the Vector is designed with an on board heavy duty points Capacitor Discharge Unit (HD/CDU). When used with the correct switch it will activate the points motor giving it a firm, positive, short burst of current. Being of short duration it prevents the motor from burning out. A "points CDU ready" yellow LED indicator is situated on the front panel. The screen-printed front panel gives perfect indication of the settings of switches and controls, supported by LED indicators, a dual LED for power and direction, plus the CDU LED.

Centre off power controls provide locomotive direction change, together with perfect smooth control at slow speeds as well as fast.

LSP fitted 'locomotive stall protection'

A 12Volt uncontrolled accessory output is provided with protection from a 1 amp circuit breaker.

Two hand held units are included with centre off controls providing power and direction change. The length of cable on each unit is 2.5 metres.

Output connections are by a Screw Type PCB Terminal Block.

Desk type dark grey case with sloping aluminium front.

Fully tested and guaranteed for 5 years.

We manufacture in the UK. RoHS compliant. Based on the information provided by our by our component manufacturers, the Vector does NOT contain the substances restricted by the RoHS legislation at levels over the maximum concentration values.

Technical specification:



  • Twin track controller manufactured from quality components
  • Components tested to 105 degrees centigrade.
  • Suitable for HO, OO and all small gauge layouts.
  • Outputs:2 x 12 Volts DC at 1.1amps protected,both controlled
  • 1 x 12 Volt DC accessory protected by 1.1amp circuit breaker.
  • Locomotive direction change by centre off power control.
  • On-board Heavy Duty Capacitor Discharge Unit (HD/CDU) for points motor operation.
  • European mains plug optional (No additional charge)
  • Dimensions:215mm wide x 130mm height x 75mm max depth.
  • Cab control - OK
  • Common return - OK

£75.00 + £4.80 p&p (£79.80 Total) UK (2kg weight)

(overseas postage at cost)
